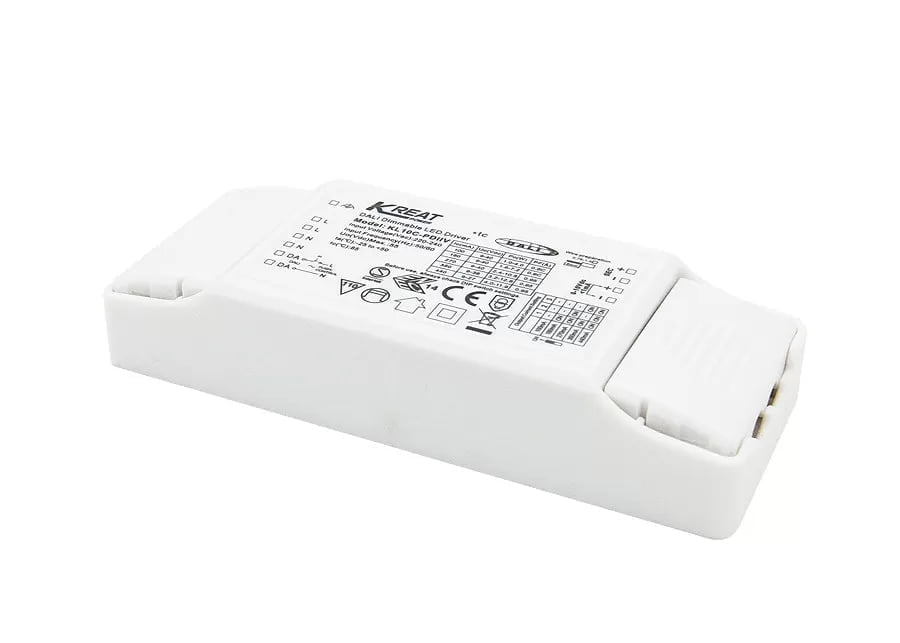

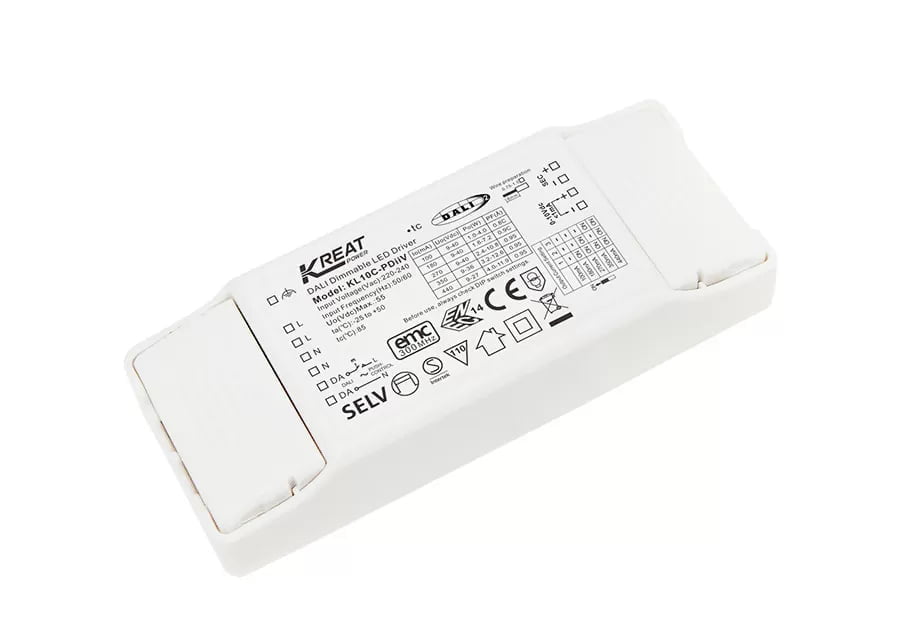

Kreat Power / Merrytek 10W 100-440MA Constant Current Dali & 0-10V Dimmable LED Driver
Kreat Power / Merrytek 10W 100-440MA Constant Current Dali & 0-10V Dimmable LED Driver - Image 2
Kreat Power / Merrytek 10W 100-440MA Constant Current Dali & 0-10V Dimmable LED Driver - Image 3
design

Standard

dimming-type

0-10V, Dali Dimmable

forward-voltage

9-40V

driver-type

Constant Current

height-mm

23.8

ip-rating

IP20

length-mm

120

output-current

100mA, 180mA, 270mA, 350mA, 440mA

power-watts

10

width-mm

46

Kreat Power / Merrytek 10W 100-440MA Constant Current Dali & 0-10V Dimmable LED Driver

SKU: KL10C-PDiiV
20+ in stock

£34.71

  • Built-in DALI2 protocol, no flicker in full dimming range
  • Primary Push dimming function; Push dimming has state memory function
  • Short circuit / over temperature / over voltage protection; reduce output current after over temperature
  • Standby power consumption ≤ 0.5W
  • 5 years warranty
20+ in stock
£
Categories: , , , ,
Brand:

Description

Output Specifications
Rated Current440mA350mA270mA180mA100mA
DC Voltage9-27V9-36V9-40V9-40V9-40V
Rated Power4-11.9W3.2-12.6W2.4-10.8W1.6-7.2W1-4W

Datasheet

Download

Dimensional Drawing

Download
