brand

Merrytek

design

Standard

dimming-type

Dali Dimmable

forward-voltage

3-45V

driver-type

Constant Current

height-mm

22

ip-rating

IP20

length-mm

116, 78

output-current

200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA

power-watts

20

width-mm

40.5

SKU: KL20C-Pdii

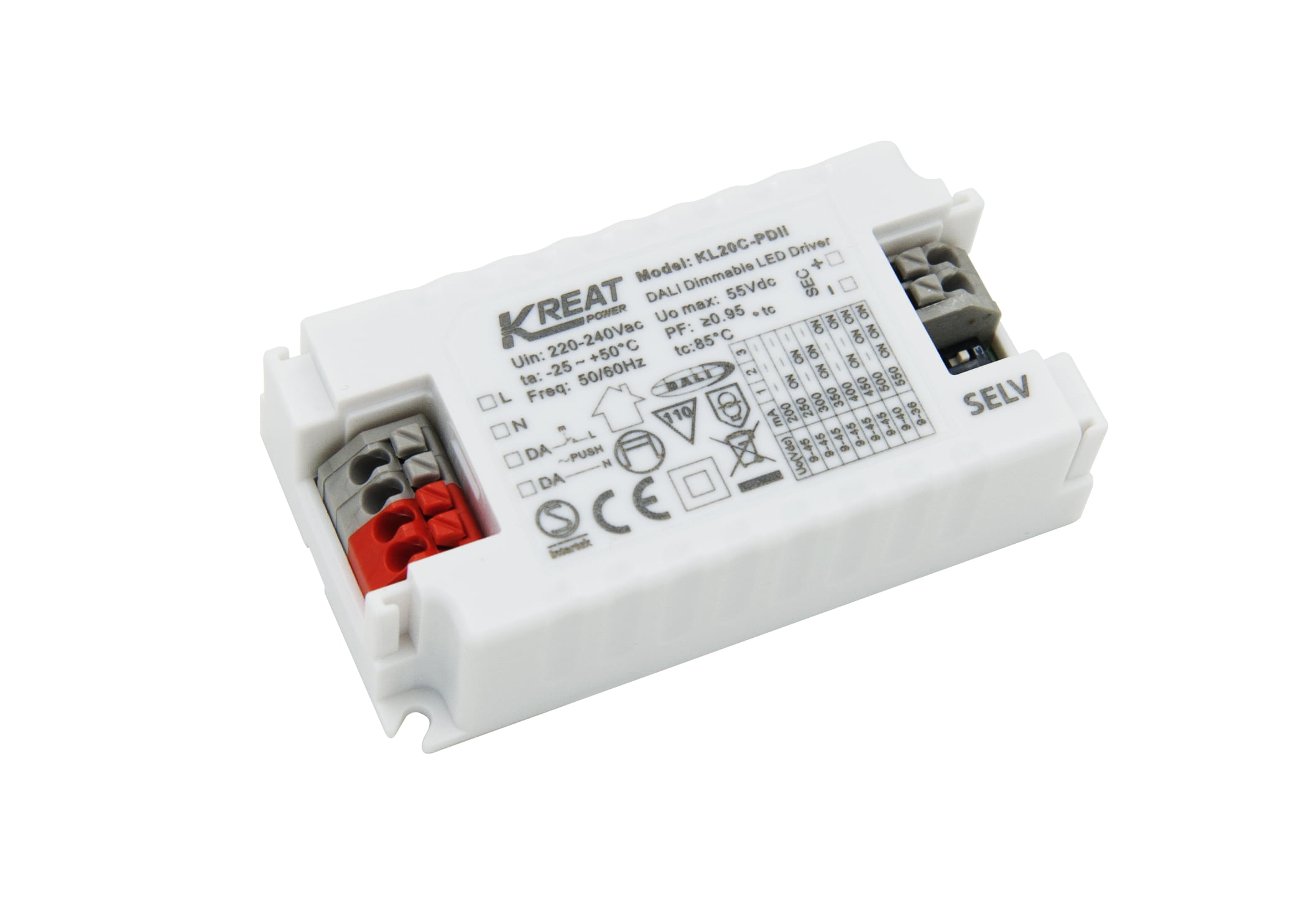

Kreat Power / Merrytek 20W 200-550MA Mini Constant Current Dali Dimmable LED Driver

  • Flicker-free for whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with push button
  • Built-in DALI interface DT6
  • Protection: short circuit / over temperature/ over voltage
  • Derating current for over high ambient temperature
  • Push dim with memory function
  • 5 year warranty
Categories: , ,

Description

Output Specifications
Rated Current550mA500mA450mA400mA350mA300mA250mA200mA
DC Voltage3-36V3-40V3-45V3-45V3-45V3-45V3-45V3-45V
Rated Power20W20W20W20W20W20W20W20W

Datasheet

Download

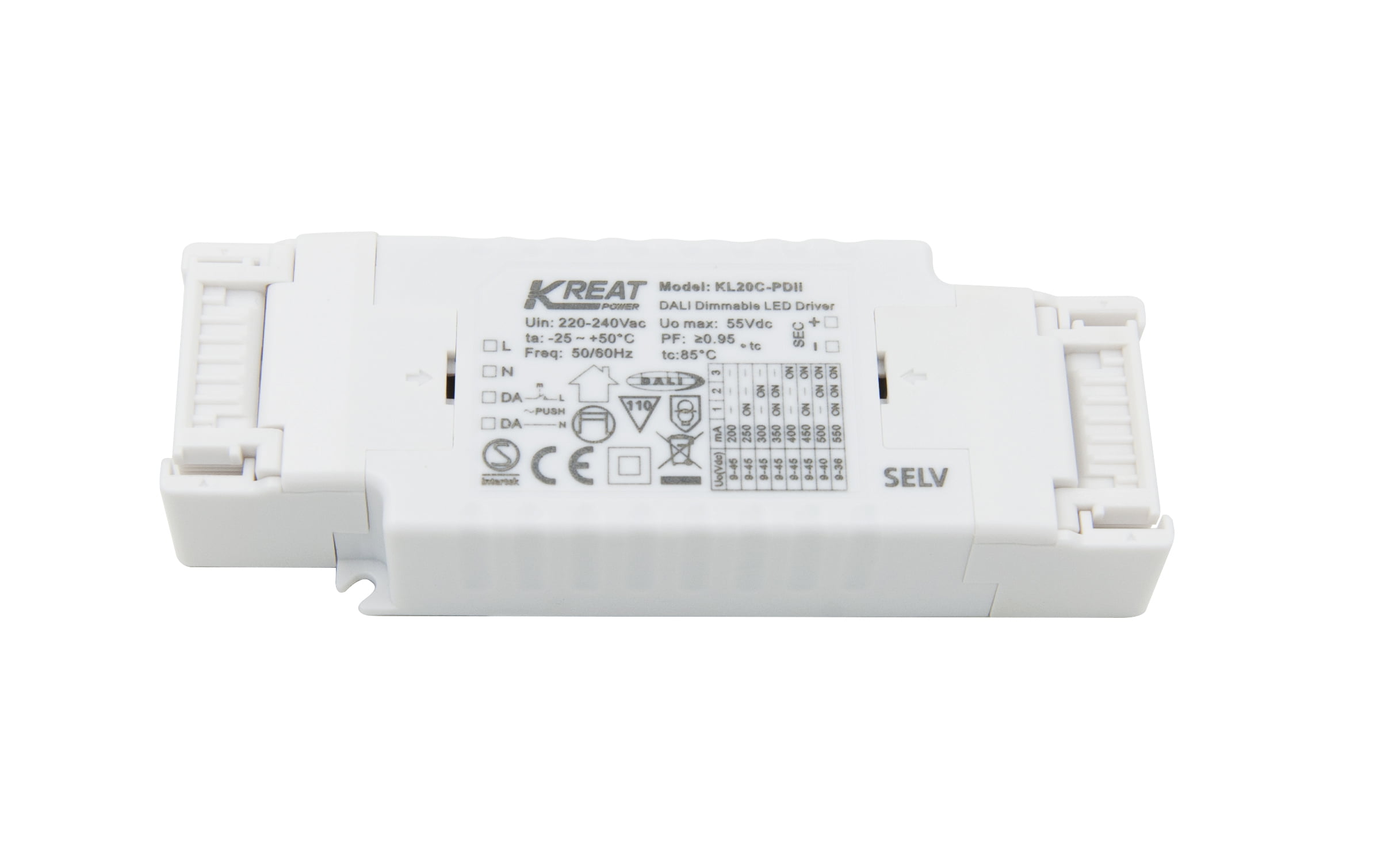

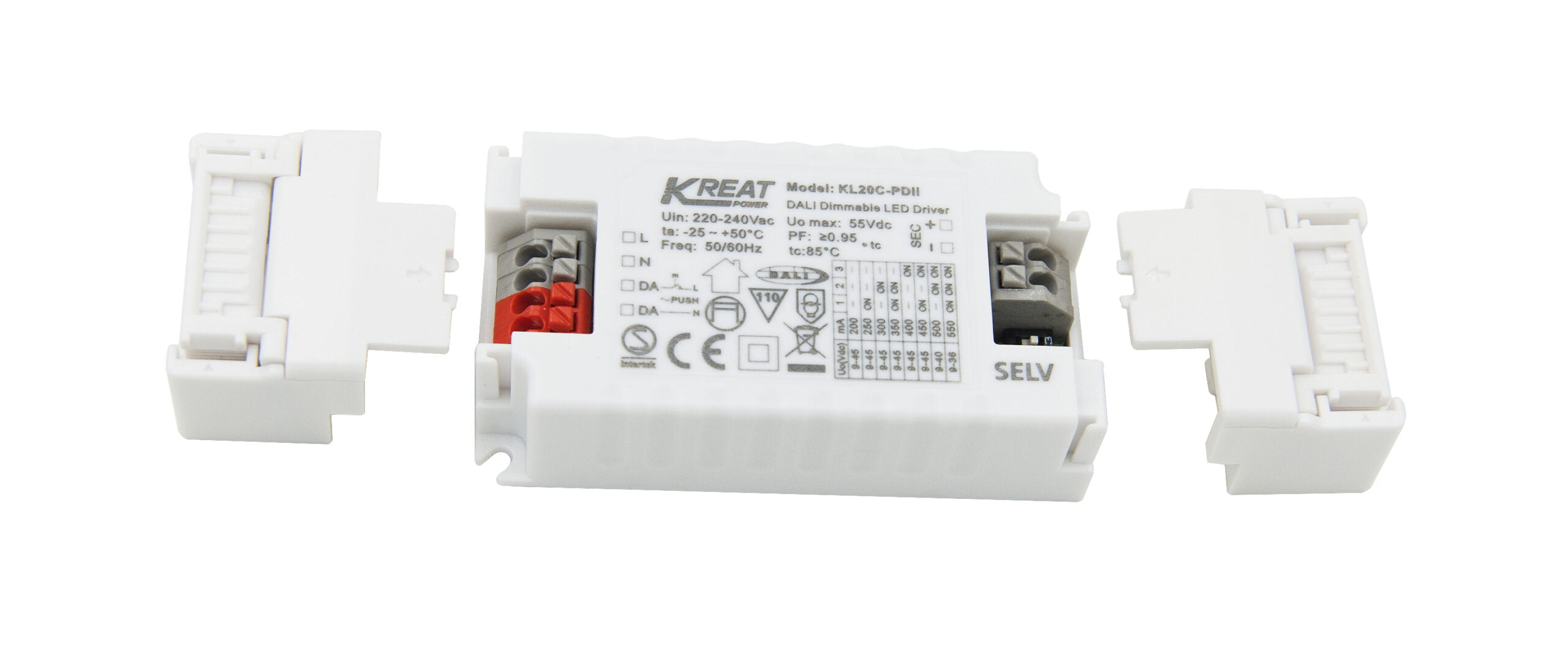

Dimensional Drawing With Terminal Covers

Download

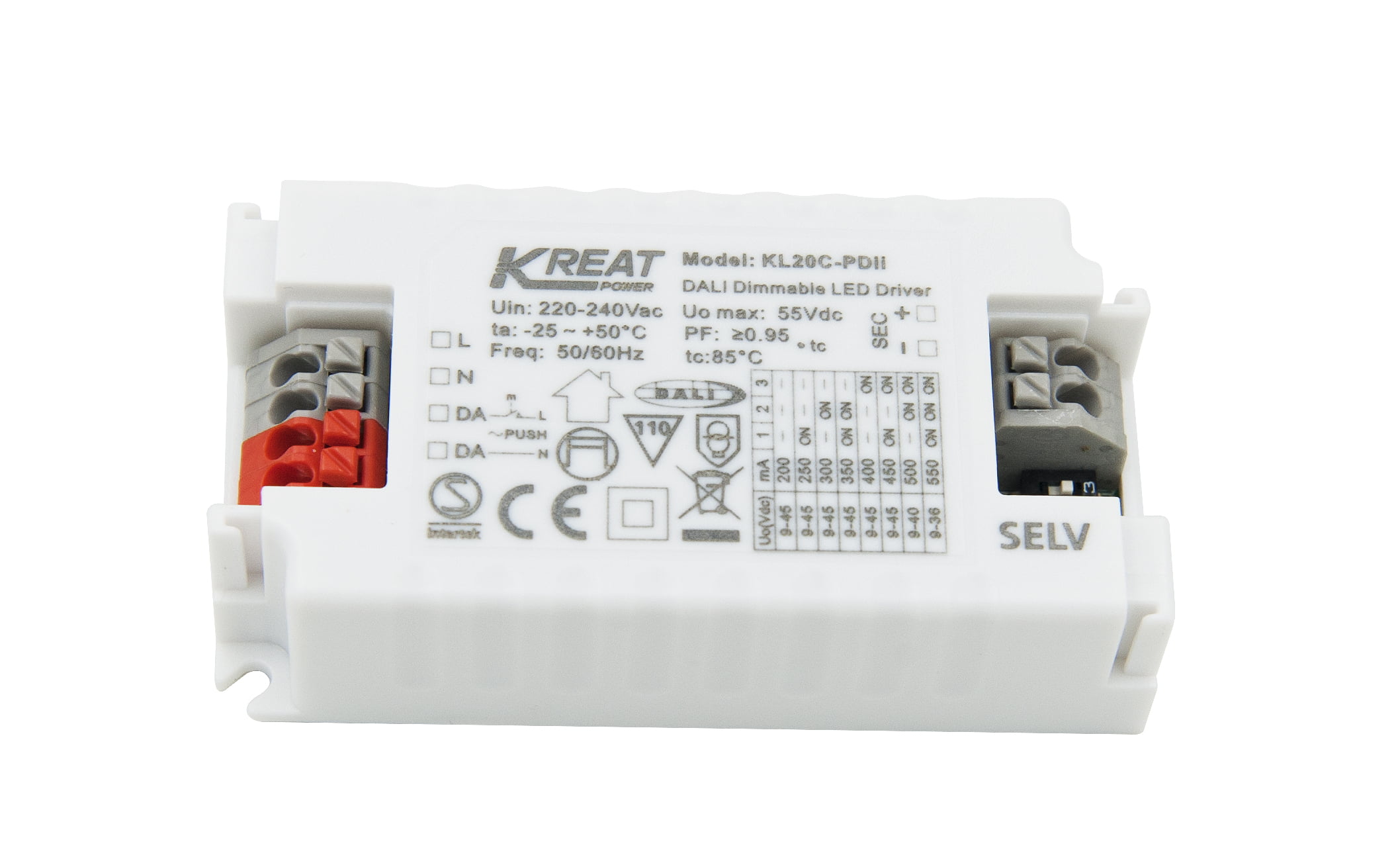

Dimensional Drawing Without Terminal Covers

Download
