Name: Kreat Power KE002-03M180KB3 3hr LED Emergency Pack With Built In Battery Manual Test - Luna LED
Brand: Kreat Power
SKU: KE002-03M180KB3

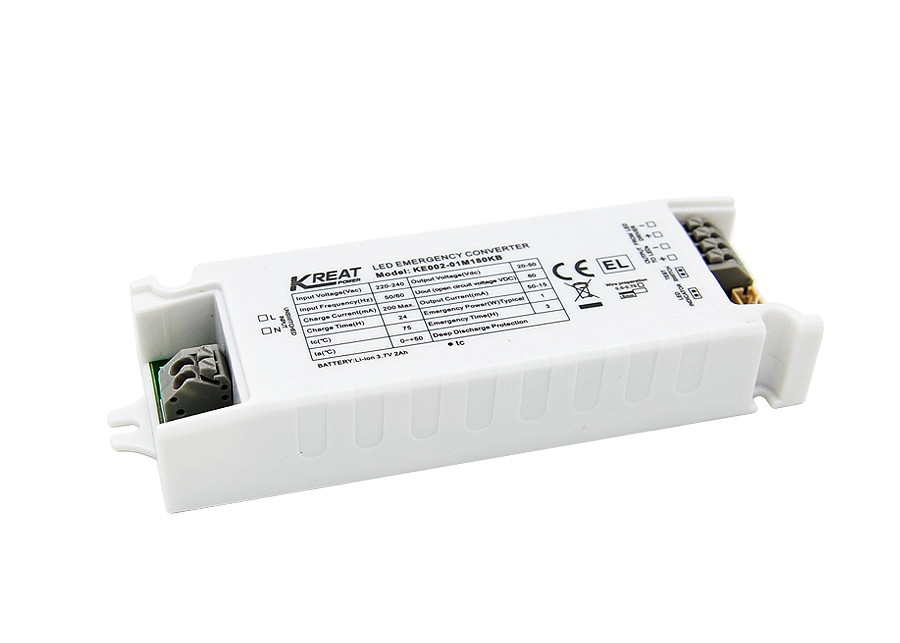

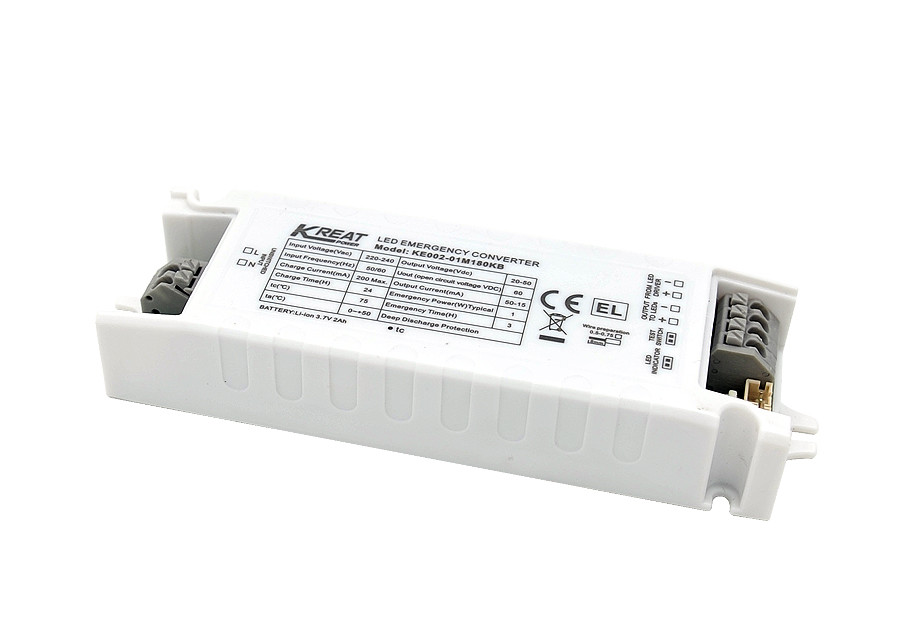

Kreat Power KE002-03M180KB3 3hr LED Emergency Pack With Built In Battery Manual Test

Merrytek KE002 Emergency Pack With Built-In Li-Ion Battery suitable for most luminaires

3W 3 Hours Emergency Pack
220-240Vac input
Output voltage:20-60Vdc
Load Output current:150-50mA
Battery type: Li-ion 3.7V 2600mA
IP20
The KE002-03M180KB3 is the manual test version of the KE002-03A180KB3
The KE002-03M180KB3 is the upgraded version of the KE002-01M180KB1 featuring a longer battery life and higher emergency power

Design bylunaled.co.uk SKU: KE002-03M180KB3 Category:Accessories Brand: Kreat Power

Description

Charge Part	KE002	03M180KB3
	Rated input voltage	220-240Vac 50Hz/60Hz
	Rated input current	0.06A Max. @230Vac
	Input inrush current	30A(twidth=100uS 50% Ipeak )@230Vac（Cold start at full load )
	Power factor	≥0.5@230Vac
	Input power	<4W
	Battery charging current (Max)	240mA
	Battery charging time	24 hours Max.
Emergency Part	Operating mode	Emergency mode
	Load type	LED
	Emergency power	3W
	Emergency time	3hours
	Load output current	150-50mA
	Load output voltage	20-60VDC
Battery	Li-ion (The battery capacity meets the emergency time at 25℃)	3.7V 2600mAh
Battery	Battery warranty	Warranty 3 year, @25℃.
Exception Driver Requirements	Surge current	8A
	Input current	3A Max.
	Output current	2A
LED Indication	Charging	Green light
LED Indication	Fault	Green light off
Emergency Function Test	Manual test	Yes
